| Place of Origin: | China |
| পরিচিতিমুলক নাম: | OEM |
| Model Number: | Mini |
| Minimum Order Quantity: | 50 UNITS |
|---|---|
| মূল্য: | negotiable |
| Packaging Details: | 5 ply carton box for export |
| Delivery Time: | 75 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Units Per Month |
| Frame Material: | Aluminum Alloy | Fork Material: | CRMO |
|---|---|---|---|
| BB-set: | Euro type bottom bracket with sealed bearings | Handlebar: | Alloy |
| Net Weight: | 10KGS | Gross Weight: | 13KGS |
| Product name: | BMX Racing Bicycles | ||
| বিশেষভাবে তুলে ধরা: | bmx freestyel bikes,bmx mountain bike |
||

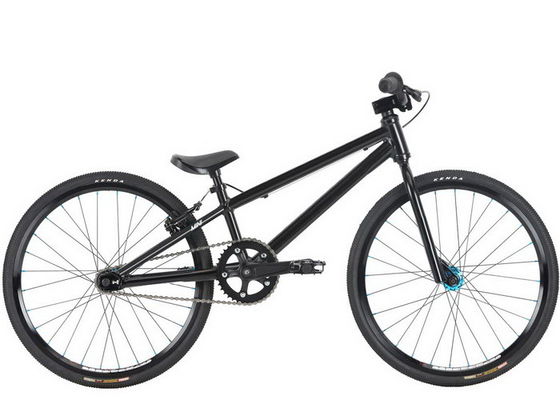

Mini 20" BMX Race Bikes /20 Inch BMX Racing Bicycles Aluminum Frame
Specifications
* 6061 aluminum frame with 10mm dropouts
* Chromoly fork, 10mm dropouts
* Alloy handlebar
* Alloy V-brake / brake lever
* Integreated headset with sealed bearings
* Kenda 20"x1-1/8 tires
* KT bmx hubs with 14T cassete with sealed bearings
* Alloy platform bmx pedal
* Velo seat/seat post combo
* Alloy 145mm crankarm
* Euro type bottom bracket with sealed bearings
* Alloy 36T chainring
| FRAME | 20" 6061 ALLOY FRAME |
| FORK | 20" FULL CRMO FORK FOR BMX RACING BIKE |
| HEAD SET | 1" AHEADSET |
| SPROCKET/SPIDER | 1/2”X1/8”x36T ALLOY CHAINRING |
| CRANK SET | 145MM ARM LENGTH; 110MM 5 BOLT PATTERN; FORGED ALLOY |
| BB-SET | 68 X 118MM; CR-MO SPINDLE SQUARE TAPER INTERFACE; 2 SEALED CARTRIDGE BEARINGS |
| HANDLEBAR | 485mm X 50mm RISE X 10 DEG SWEEP 3.2t WALL |
| STEM | MELT FORGED; 45MM EXT; 22.2MM BAR BORE; 32MM STACK HEIGHT; 25.4MM STEER TUBE BORE |
| GRIP | 115MM LENGTH |
| F/HUB | 28H LOW FLANGE ALLOY SHELL; 3/8" X 140MM LENGTH AXLE; LOOSE BALL |
| R/HUB | 28H LOW FLANGE ALLOY SHELL; 3/8" X 155MM LENGTH AXLE; LOOSE BALL |
| RIM | 20 X 1 3/8"; 28H; DOUBLE WALL; PV |
| SPOKES | 14 GUAGE STEEL BLACK; W/ 12MM BLACK NIPPLES |
| TIRE | 20x1-1/8", BK/BKS/BSK 60tpi-100psi DTC |
| F/BRAKE | SIDE PULL BRAKE |
| R/BRAKE | MINI V-BRAKE |
| BRAKE LEVER | CAST ALUMINUM LEVER AND BRACKET; 2 FINGER LEVER; BLACK BRACKET; BLACK LEVER |
| FREEWHEEL | AON-14 1/2"x3/32"; 14T |
| CHAIN | 1/2'X1/8"X80L |
| CHAINGUARD | 20" BMX ; M5X8L 20" SMOKE PLASTIC |
| SADDLE | PLASTIC SADDLE BLACK W/O PADDING; ALLOY POST 22.2 X 200MM |
| SEAT CLAMP | MX28 25.4MM |
| PEDALS | Alloy body; Boron Steel Axle; Loose ball bearing |
